ZTX5 60
The Ultima series is a the next evolution of zero turn mowers.
User comfort is paramount with many clever ergonomic features built in. The open rear design and easy access to the belts and deck mean ongoing maintenance is a breeze.
Backed by Cub Cadet's 3 year warranty.
- 60 Inch Fabricated Cutting Deck
- Roll over protection
- 24HP Kawasaki V-Twin Engine
- 2 Year Commercial Warranty

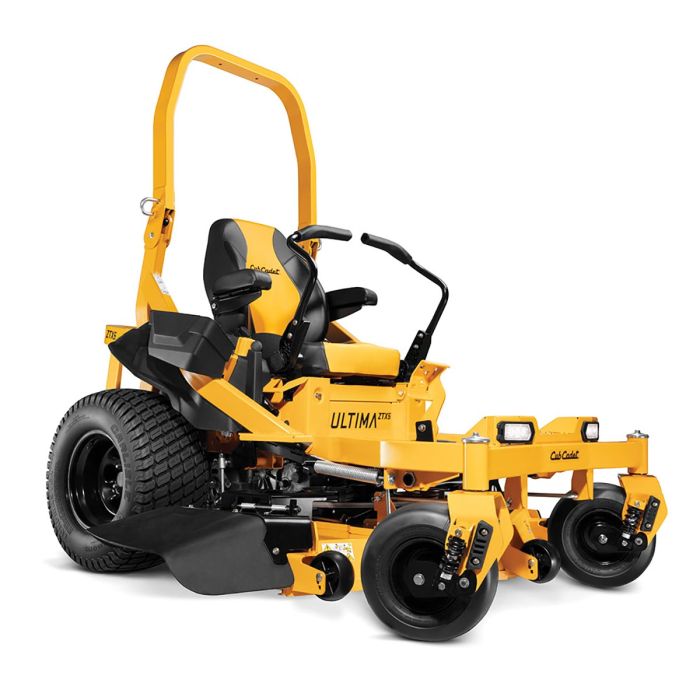

With a distinctive look and cutting edge design, the next generation Ultima ZTX5 60 stands out from the crowd.
Built with commercial grade features including a 60 inch 10 Gauge steel fabricated steel deck, ROPS bar, and dual ZT3200 transmissions, its made for ultimate durability and productivity.
User comfort is paramount with many clever ergonomic features built in, such as a high back comfort seat with armrests, rubber foot rest, easy dial for deck height adjustment, overmoulded comfort lap bars, and the list goes on,
Add agile zero turn manouvrability for greater productivity, and Cub Cadet's famous Aeroforce deck design, delivering a best in class cutting finish.
The Ultima ZTX5 60 is ideal for a wide range of block sizes and terrain types. The ultimate zero turn mower!
Country of Manufacture | United States |
---|---|
Block Size | Up to 12 Acres |
Engine | 24HP Kawasaki V-Twin Engine |
Transmission | Dual EZT 3200 Hydrostatic |
Cutting Width | 60 Inches |
Cutting Deck Construction | Fabricated Steel |
Cutting Deck Thickness | 10 Gauge with 2 Gauge reinforcement and 7 Gauge side wraps |
Cutting Height Adjustment | 16 Position |
Cutting Height Maximum | 120mm |
Cutting Height Minimum | 25mm |
Deck Wash | No |
Anti Scalp Wheels | Yes |
Cruise Control | No |
Blade Engagement | Electric PTO |
Blade(s) | 3 Blades (Part #742P05516) |
Seat | Premium high back adjustible seat with cushioned arm rests and suspesion. |
Turning Circle | N/A - Zero Turn |
Starting | Key Start |
Tow Hitch | Yes |
Reverse Mowing | Yes |
Grass Catcher | Optional Extra |
Mulch Plug | Optional Extra |
Safety | Operator Presence Control |
Front Tyres | 13 x 6.5 Inch with front wheel steering |
Rear Tyres | 23 x 12 Inch Inch Turf Master |
Fuel Tank | 20.8L Centre Mounted Fuel Tank |
Roll Over Protection | Yes |
Maximum Drive Speed | 13 km/h |
Maximum Reverse Speed | 6 km/h |
Maximum Slope Capability | 15 Degrees |
Product Length | 215cm |
Product Weight | 395kg |
Product Width (Chute Up) | 159cm |
Warranty - Engine | 3 Year Domestic / 2 Year Commercial |
Warranty - Unit | 3 Year Domestic / 2 Year Commercial |
Disclaimer | Specifications subject to change without notice and without incurring obligation. Images depicted on website are for Illustration purposes only. Actual products offered for sale may vary in design, features, attachments, and non-functional appearance. |
-
